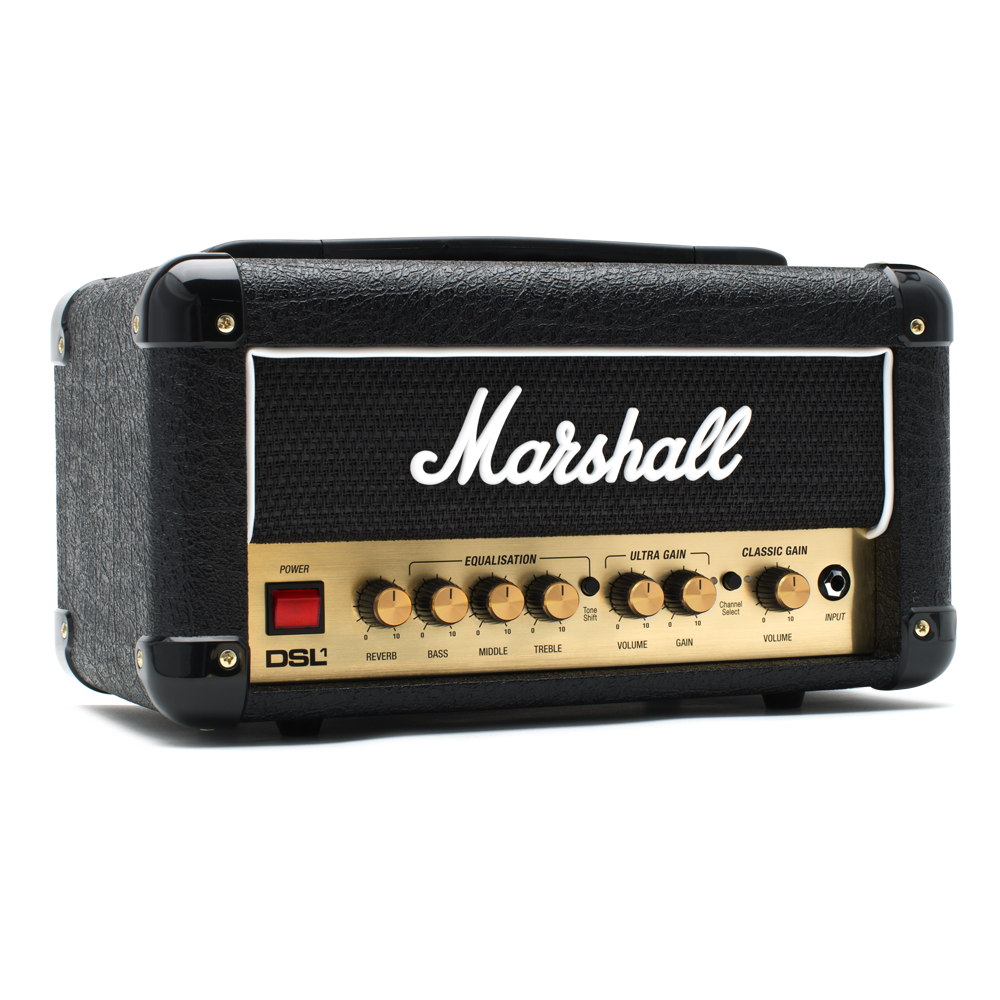

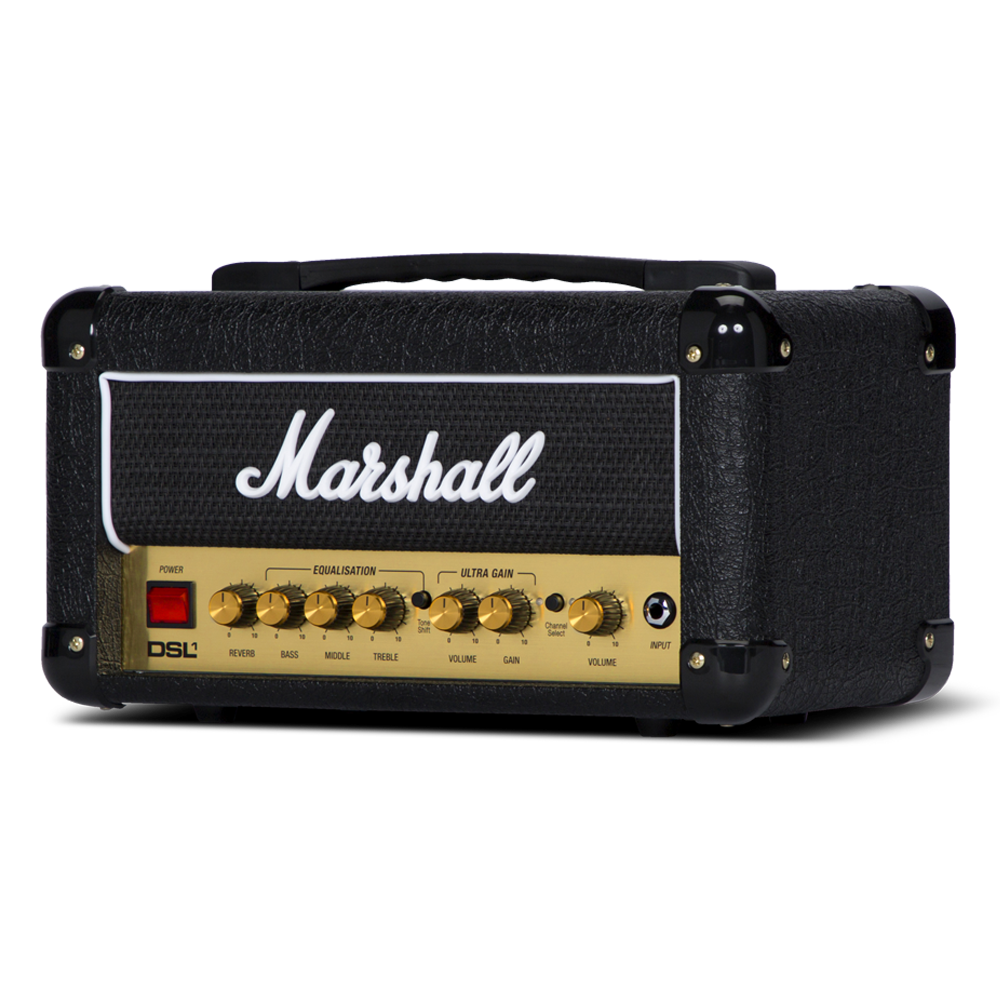

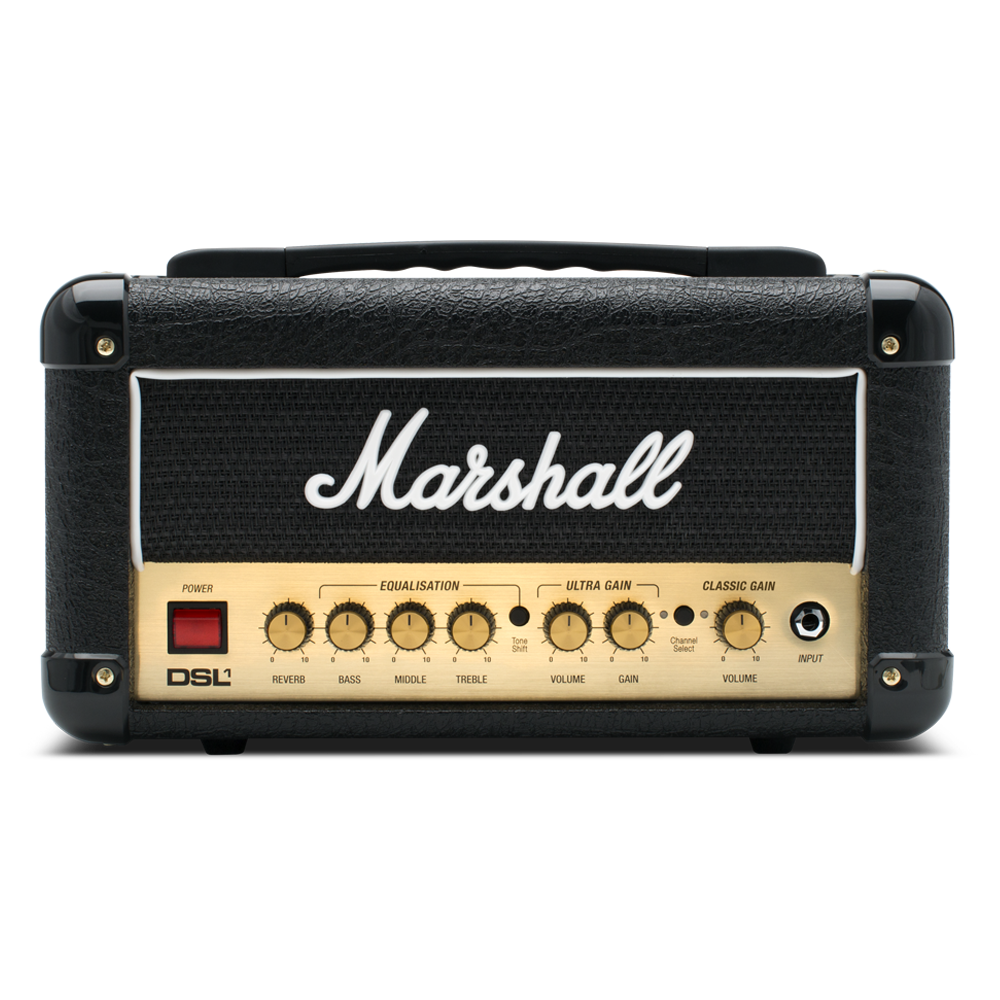

Marshall DSL1HR 1-watt Tube Head

TECHNICAL SPECIFICATION

GENERAL

• Model : DSL1HR
• Range : DSL
• Technology : Valve
• Channels : 2, ultra gain and classic gain

ELECTRONICS

• Output wattage : 1W with optional power reduction to 0.1W

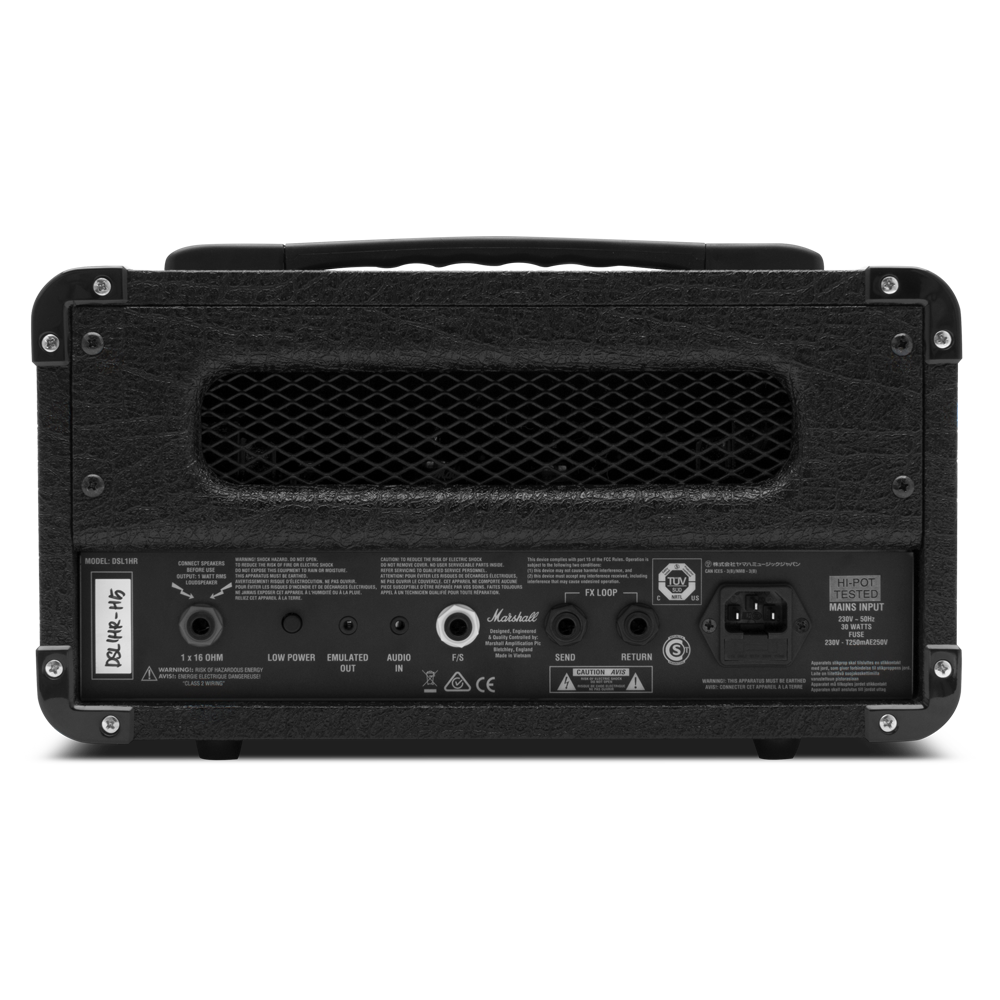

• Outputs : 1 x 1/4" jack speaker output, 16Ω load only, 1 x 3.5mm jack emulated line out
• Inputs : 1 x 1/4" instrument jack, 1 x 3.5mm jack aux in, footswitch
• Controls : Classic gain channel with volume, ultra gain channel with gain and volume control, channel select switch, tone shift switch, treble, middle, bass, reverb and power reduction option
• Effects : Digital reverb
• Effects loop : Yes, series, send/return

VALVES

• Pre amp valves : 2 x ECC83
• Power amp valves : 1 x ECC82

ACCESSORIES

• Footswitch : PEDL-90011 included
• Cable : Detachable power cable included

DIMENSIONS (INCLUDING FEET AND HANDLE)
