Description
Features
Indian Tones
Sitar , Harmonium , Veena , Bulbul Tarang , Tanpura , Santur , Sarod , Sarangi , Esraj , Swarmandal , Shanai , Bansuri , Pungi , Shruti Box , Jal Tarang , Tabla, Tabla Tarang, GM Sitar, GM Shanai .
Indian Rhythms
Bhangra 1, Bhangra 2, Dadra 1, Dadra 2, Garba 1, Garba 2, Keharwa 1, Keharwa 2, Dandiya 1, Dandiya 2, Teen Taal 1, Teen Taal 2, Bhajan 1, Bhajan 2, Jhap Taal 1, Jhap Taal 2, Rupak, Deepchandi, Indian Pop 1, Indian Pop 2, Indian Pop 3, Indian Pop 4, Indian Pop 5, Ektal, Chautal, Dhamar, Tamil, Rajasthani, Goan, Qawwali, Kerala, Goan Pop, Karnataka, Telugu Keharwa Tanpura & Tabla, Dadra Tanpura & Tabla, Teen Taal Tanpura & Tabla, Rupak Tanpura & Tabla, Deepchandi Tanpura & Tabla
57 SFX Voices
57 SFX voices including animal, nature and theatrical sounds along with religious sound like-Shankh and Temple Bell
Rain, Seashore, Thunder, Wind, Bubble, Bird, Cat, Rooster, Cow, Dog, Donkey, Elephant, Goat, Horse, Horse Gallop, Lion, Nightingale, Peacock, Applause, Footsteps, Heartbeat, Child Crying, Child Laughing, Man Laughing, Punch, Scream, Roller Coaster, Bike Vroom, Car Passing, Car Crash, Car Engine Ignition, Car Horn, Jet Plane, Submarine, Car Tires Squeal, Train, Buzzer, Coin, Scratch, Shankh, Clock Tick- Tock, Whistle 1, Whistle 2, Whistle 3, Ambulance Siren, Blast, Bar Chimes, Doorbell, Door Slam, Door Squeak, Firework, Gunshot, Machine Gun, Police Siren, Telephone Call, Telephone Ring, Temple Bell.
Next Generation Sound Using the High Performance LSI
AiX Sound Source delivers High Quality Tones and Rich Expressiveness
The CT-X Series comes with the AiX Sound Source, which can produce a wide range of sound qualities from powerful bass tones to clear high tones. The exceptional computing power of the high performance LSI reproduces the natural charm of acoustic instrument sounds, such as the agreeable change in tone when a piano key is struck, the sensation of a drum performance, or soaring strings. Dynamic tone changes also give its electronic sound exceptional expressiveness.
The high-speed digital signal processor is also applied for each sound type, such as melody, backing drum and bass, or organ. Even the standard ensemble for a keyboard delivers distinct sound for each instrument for an expressive performance.

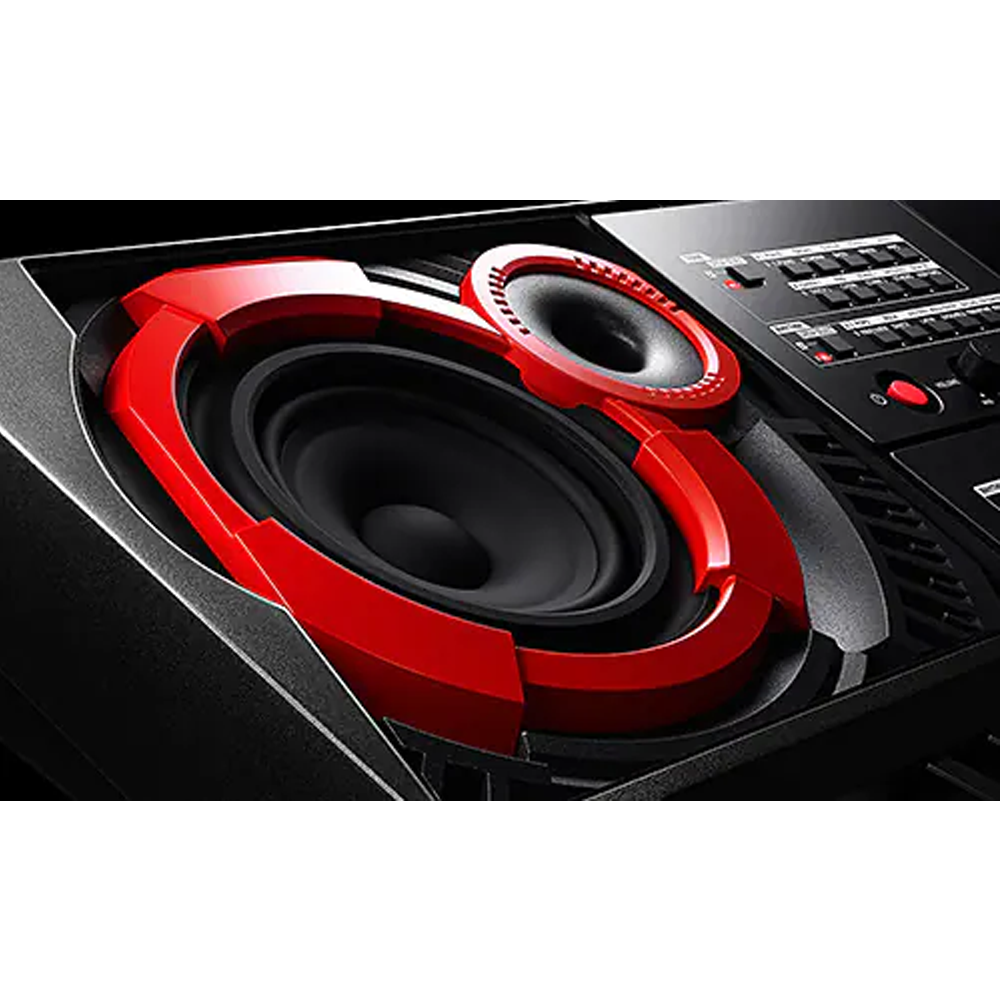

High Output Amplifiers and High Performance Bass Reflex Speakers
Boasting best in class output from 15W + 15W amp. The keyboard delivers a supremely realistic performance with powerful heavy bass, even when used alone without a PA system or external sound system, thanks to the high performance bass reflex speakers equipped with large magnets, and especially the newly designed bass reflex speaker enclosure that emphasizes low frequency.
Rich Functionality Supports Your Performance
Accompaniment For the Latest Music Scenes
The extensive library of built-in accompaniment patterns covers a wide range of musical genres, including modern electronic music.

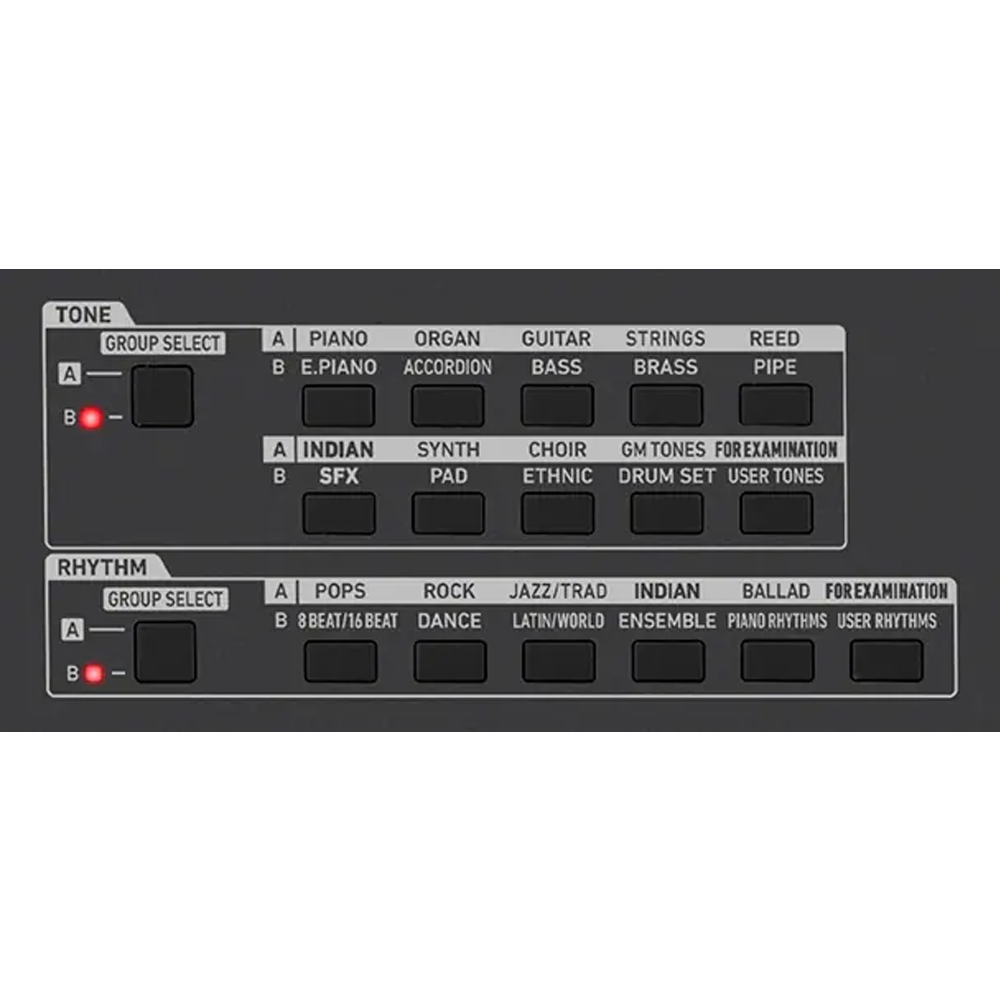

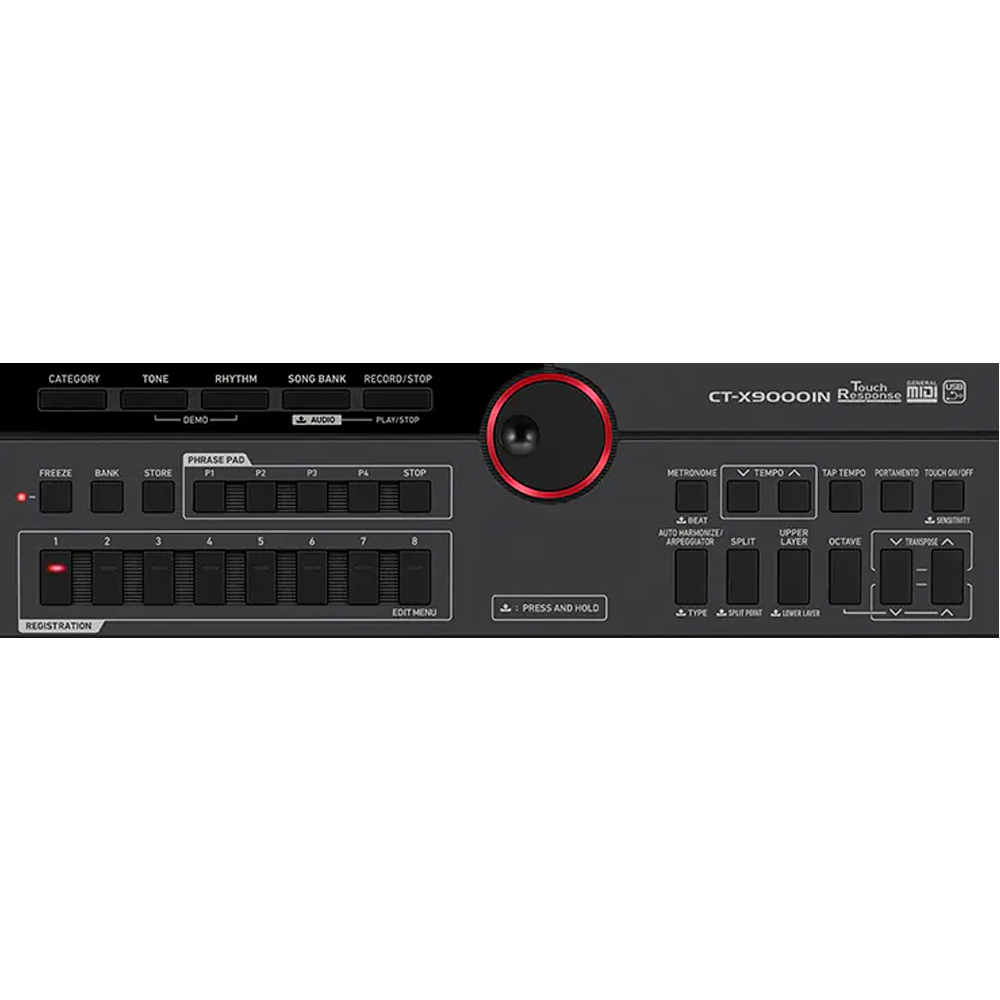

Friendly Interface
Keys for each function are laid out in tile format. Easy to understand operation allows anyone to perform more intuitively.
High Performance DSP and System Effects
100 preset types of DSP effect let you alter tones so they sound exactly as you imagined. Includes reverb, chorus and delay system effects. Effects can be adjusted on the fly, so you can give full expression to your music during live performances.
Extensive Registration Functionality Lets You Save Your Favorite Settings
Save up to 128 detailed keyboard setups, including tones, rhythms and tempo. Load and switch between them instantly as and when needed to deliver a gripping stage performance.
Record Phrases and Play Back with Phrase Pads
Record phrases so they’re ready to use at the crucial moment, and play them instantly, at the touch of a button. Easily create tracks which one person alone couldn’t perform, like band or ensemble performances, by recording overdubbed playback from the four phrase pads.
Full Suite of Production Functionality for Composing Your Music
17 track MIDI recorder to record your original music
The keyboard comes with a 16 track + 1 system track MIDI recorder so you can record up to 10 original songs with around 40,000 notes each. It also supports step recording and editing of recorded data. Take advantage of multi-track recording, recording individual instrument parts on separate tracks before bringing the whole piece together.
42 Channel Mixer Combines Multiple Parts At Will
The keyboard has a multi-channel mixer, ideal for mixing down. Refine expression during performances or make fine adjustments to music by controlling tone and effects channel by channel.
User-Created Rhythms
You can create original accompaniment patterns with up to 8 parts. The keyboard also has a full range of editing functions, such as: an easy edit function to create your own rhythm from a built-in one; a real-time recording function for directly entering and saving rhythms; or mixer settings for controlling the balance of each track or effect levels.
Ready for Expansion
Lots of Expansion Ports for Easier Performance, Songwriting and Editing
The keyboard has plenty of ports to connect to computers and audio equipment. You can even play along with music on a connected audio player. There are also assignable jacks for a sustain or expression pedal.
WAV Audio Data Playback
WAV audio files saved onto USB flash memory can be played on the keyboard using the USB TO DEVICE port.
User Area and Data Manager Software
Recorded song data can be saved in the user area, along with tones and rhythms you have edited. Casio’s Data Manager software lets you transfer data and save it to a computer, so it can be loaded on to another CT-X model keyboard.
*It may not be possible to load some data even on another CT-X keyboard due to differences between models.
SPECIFICATIONS
Basic Information
| Number of Keys | 61 standard size keys |
| Touch Response | Sensitivity 3 types, Off |
|
Maximum Polyphony
|
64
|
|
Number of Tones
|
Preset Tones: 800 (43 Indian)
User Tones: 100 |
|
Number of Rhythms/Patterns
|
250 (39 Indian) |
| Automatic Accompaniment | Built-in Rhythms: 250 (39 Indian) User Rhythms: 100 One Touch Presets: 250 |
|
Built-in Songs
|
Built-in Songs: 30 User-recorded Songs: 10 USB Memory Songs: Playback of standard MIDI files (SMF format 0/1), CASIO MIDI files (CMF format) on a USB flash drive is supported. |
|
Demonstration Songs
|
3 |
| Recorder | MIDI Recorder Real-time recording, playback Keyboard Performance Recording: 10 songs, 17 tracks (1 system track, 16 solo tracks) Memory Capacity: Approximately 40,000 notes (per song) Editing Mode: Song editing, track editing, event editing, step input Other Functions: Overdubbing, punch-in recording |
| Pedal |
Sustain, sostenuto, soft, rhythm/song, expression
|
|
Speaker
|
10cm x 2 (Output: 6W + 6W)
|
|
Power Supply
|
2-way |
|
Power Consumption
|
8 W |
|
Dimensions
|
W 94.8 x D 38.4 x H 11.6 cm |
|
Weight
|
Approximately 6.9 kg (without batteries)
|
|
Included Accessories
|
Music stand, AC adaptor |
|
Net Quantity
|
1 unit; Contents: (Electronic Musical Keyboard, AC Adaptor, Power Cord Set, Note Book Stand) - 1 piece each |
Key Features
| Effects |
・Reverb: 32 types, Off ・Center cancel (vocal cut) for input from the Audio In jack |
|
Layer/Split
|
Layer, Split (configurable split point, lower point, chord point settings)
|
|
Octave Shift
|
Upper 1/Upper 2/Lower 1/Lower 2, ±3 octaves
|
| Transpose | ±1 octaves (-12 to 0 to +12 semitones) |
| Tuning Control | Tuning: A4 = 415.5 to 465.9 Hz (Initial Default: 440.0 Hz), Part coarse tune: For each keyboard part, ±2 octaves (-24 to 0 to +24 semitones), Part fine tune: For each keyboard part, ±99 cents |
| Scales | 17 preset scales, scale fine tuning |
| Arpeggiator | 150 types |
| Music Presets | 310 (With chord progressions) |
| Registration | Maximum 128 setups (8 setups x 16 banks), registration sequence |
| One Touch Presets | 250 sets |
|
Auto Harmonize
|
12 types |
| Mixer | Affected Parts: Sound source parts, microphone input part Parameters: Part on/off, volume, pan, reverb send, chorus send, delay send |
| Metronome |
Beat: 0 (accented tone off), 1 to 16 Tempo: Tempo value: 20 to 255
|
|
Audio Playback
|
Playback of audio files on a USB flash drive is supported. Supported File Formats: WAV format, 44.1 kHz 16 bit Other Functions: Center Cancel (Vocal Cut) |
|
One Touch Presets
|
Yes |
|
Pitch Bend Wheel
|
Yes |
Others
|
Phrase Pad
|
Number of Pads: 4 User Phrases: 100 (4 phrases x 25 pads) Editing Mode: Copy, delete, phrase editing |
| Others |
Controllers: TOUCH ON/OFF button, PORTAMENTO button |
Input/Output Terminals
|
LINE OUT
|
Standard jacks x 2/Output impedance 2.3 kΩ, Output voltage 1.9 V (RMS) MAX |
|
USB port
|
Type A, Type B
|
| AUDIO IN | Stereo mini jack |
|
MIC IN
|
Standard jack |
| PEDAL | Pedal 1 Jack: Standard jack Pedal 2, Expression Jack: Standard jack |
| PHONES/OUTPUT | Stereo standard jack |
Extented Functions
| MIDI | 16 multi-timbre received, GM Level 1 standard |
