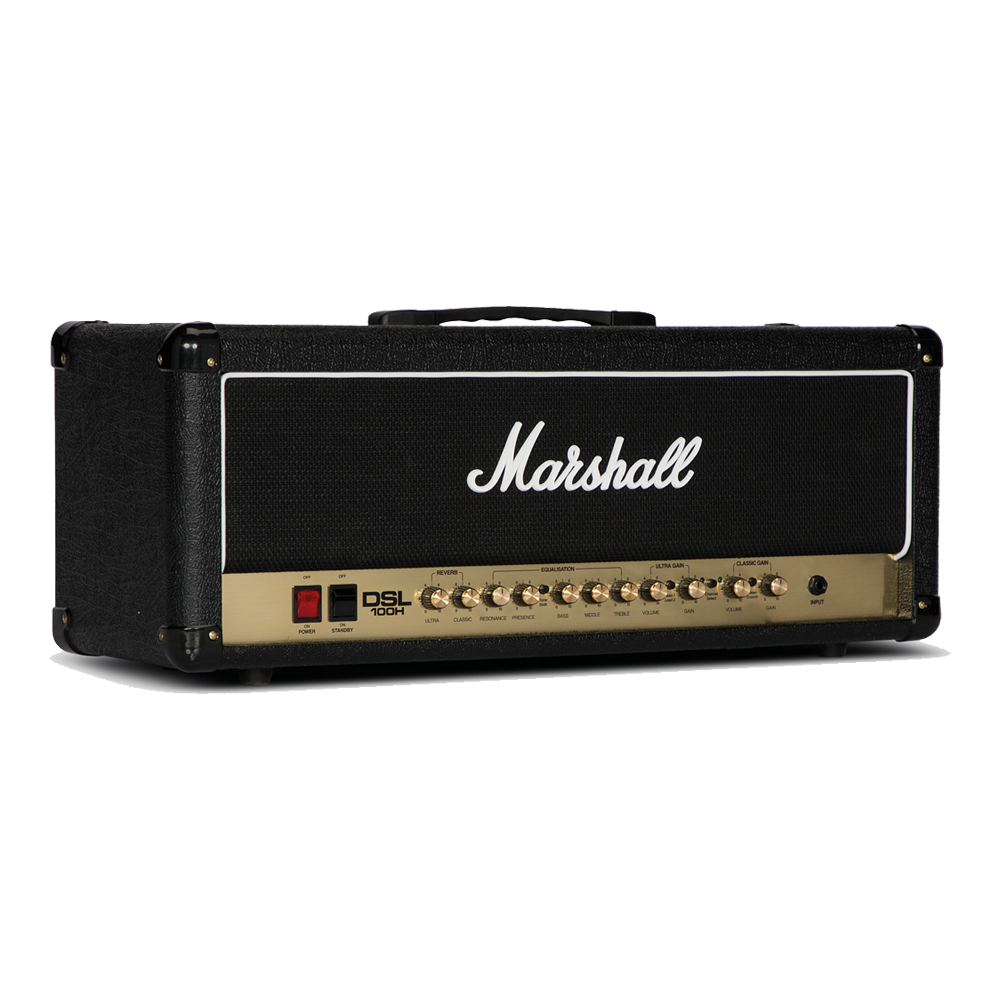

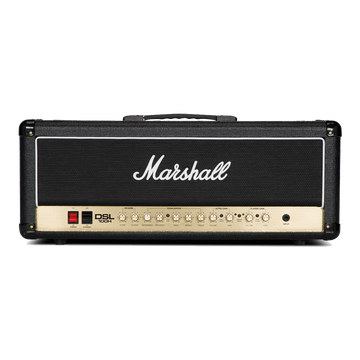

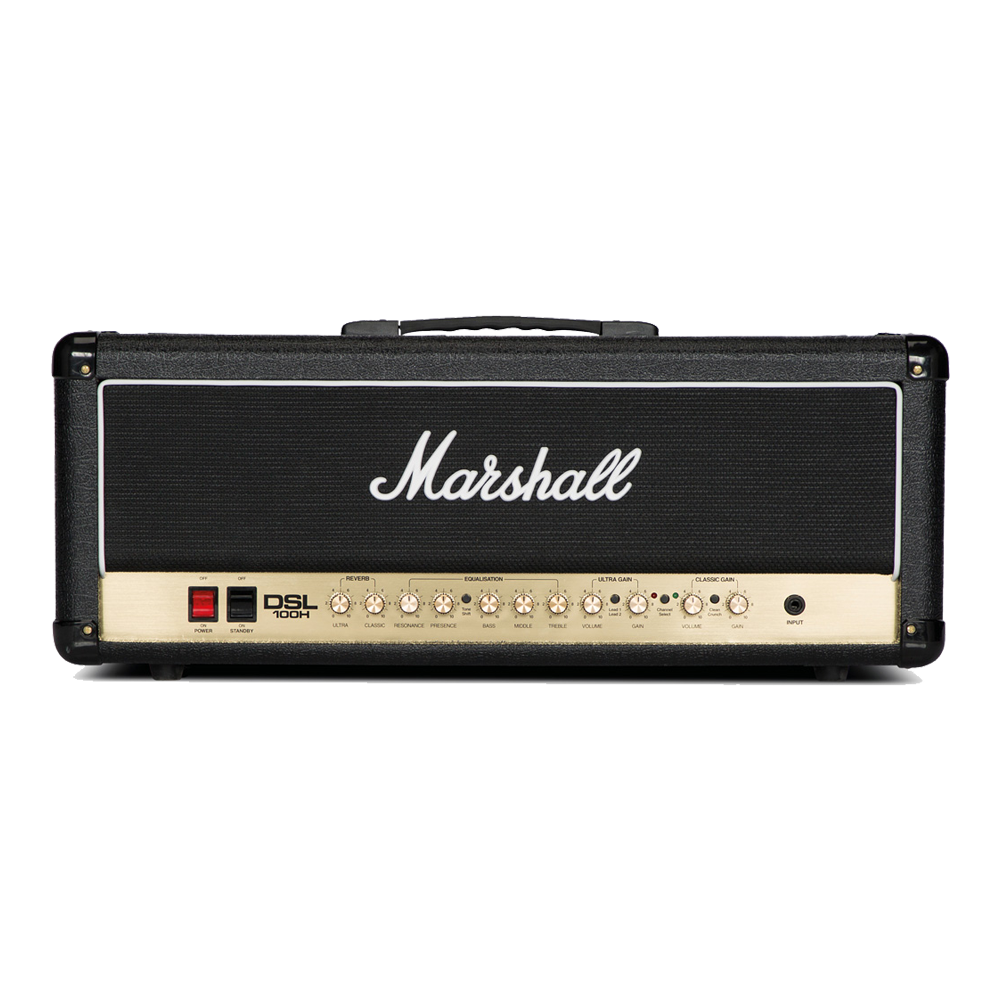

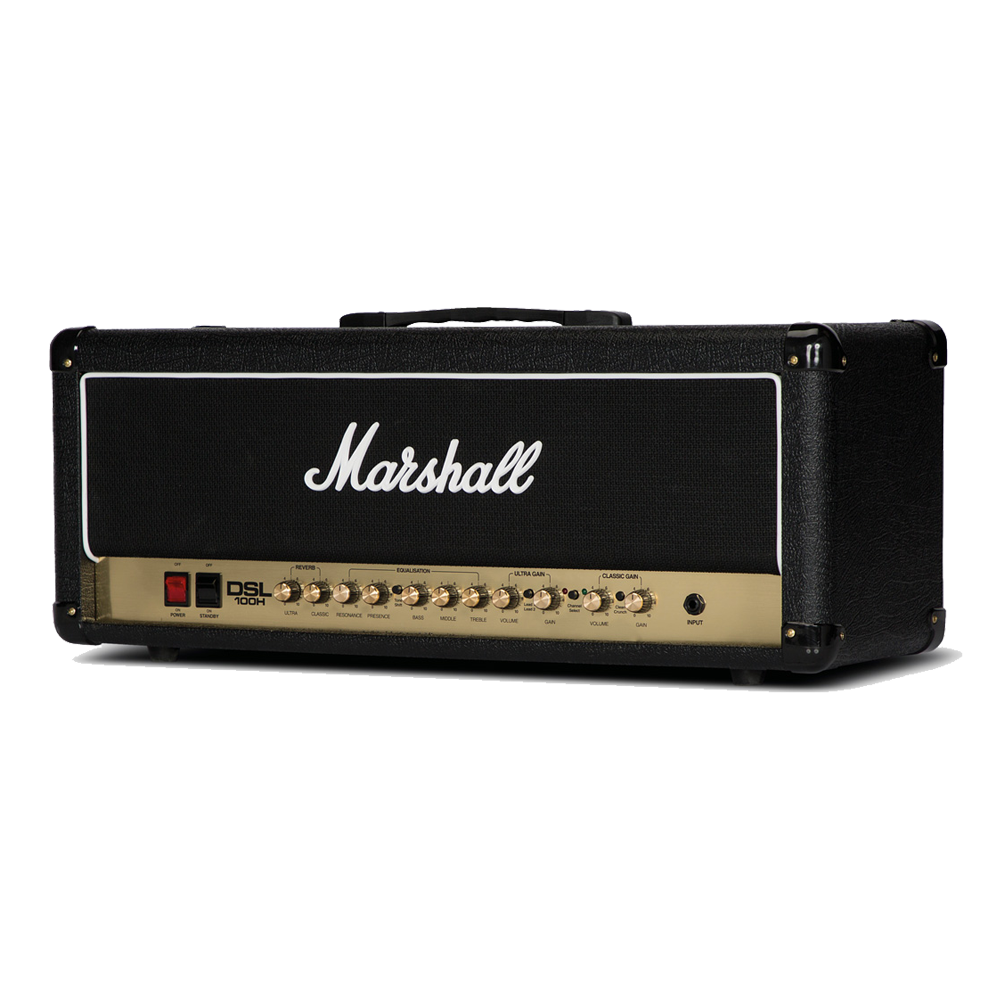

Don’t go anywhere without out it. This formidable 100W head delivers that unmistakable Marshall tone with ease, giving you the flexibility and confidence to take to the stage. Crank it up or dial it back. The DSL100H takes it all in its stride.
PLAY ANYWHERE
With the ability to switch to half power mode without affecting sound quality, you can match your sound to your environment.
SWITCH UP YOUR SOUND
With individual reverb settings per channel, an FX loop, presence and resonance, your sonic possibilities are endless.
DIAL IN YOUR TONE
Move between clean, crunch and overdrive with the two footswitchable channels. Each one comes with a further two modes for true versatility.
TECHNICAL SPECIFICATION
GENERAL
- Technology : Valve
- Channels : 2 (Split)
ELECTRONICS
- Output wattage : 100w

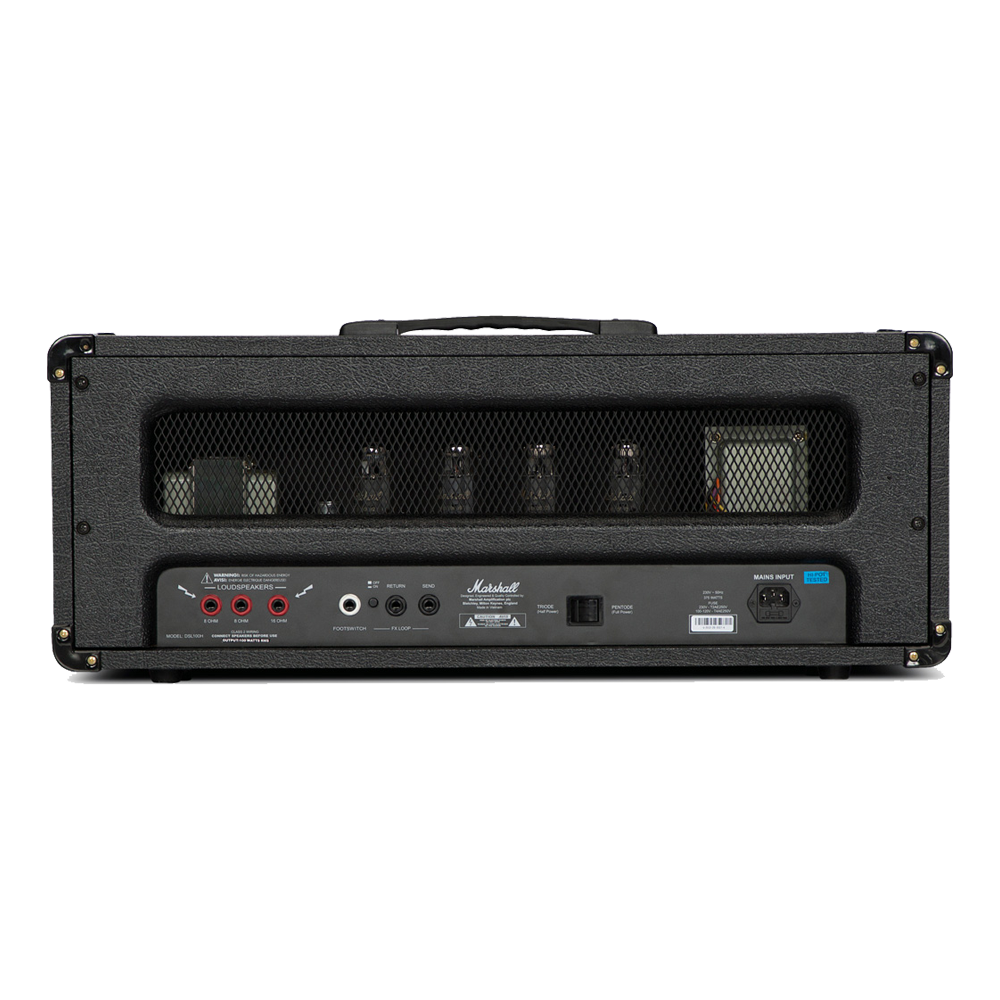

- Outputs : Speaker outputs: 3 x 1/4" jack sockets (16Ω load / 8Ω load)
- Inputs : 1 x 1/4" instrument input jack
- Controls : Reverb (ultra gain channel), Reverb (classic gain channel), Resonance control, Presence control, Tone shift, Bass, Middle, Treble, Ultra gain channel: Volume Lead 1 / Lead 2 button, Gain level Channel select Classic gain channel: Volume, Clean/crunch select, Gain level, Pentode/triode power reduction switch (on rear)
- Effects : Reverb
- Effects loop : Yes, Send/Return with bypass switch
VALVES
- Preamp valves : 3 x ECC83
- Power amp valves : 4 x EL34
ACCESSORIES
- Footswitch : PEDL-91004
- Cable : Detachable power cable included
DIMENSIONS (INCLUDING FEET AND HANDLE)
- Weight : 19kg / 42lbs
- Width : 741mm / 29.2"
- Height : 274mm / 10.8"
- Depth : 242mm / 9.5"
